Magnetization and Measurement of Permanent Magnets
Magnetization is a fundamental property of permanent magnets, determining their strength and ability to interact with other magnetic materials. Understanding and measuring this property is crucial in various applications, from designing motors and sensors to evaluating magnet performance and quality.
Magnetization Concepts:
- Magnetic Moment (m): This represents the overall strength of a magnet. It’s the product of the magnetization (M) and volume (V) of the magnet.
- Remanence (Br): Magnetic field strength remaining in the magnet after an external magnetizing field is removed.
- Coercivity: refers to the strength of the reverse magnetic field required for demagnetization of a permanent magnet.
Measurement Techniques:
Several techniques can be used to measure the magnetization of permanent magnets, each with its advantages and limitations:
- Fluxmeter and Helmholtz Coil: Measures the magnetic field produced by the magnet using a search coil.
- Hall Effect Sensors: Non-contact method using Hall sensors to measure the magnetic field strength near the magnet’s surface. Offers fast and convenient measurements but might not capture the magnet’s internal magnetization fully.

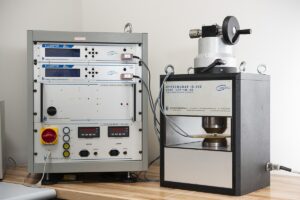

- Hysteresisgraph: Measures the magnetization as a function of applied magnetic field, generating a loop called the B-H curve. Provides valuable information about magnetic properties like coercivity and remanence.
Practical Applications:
Measuring magnetization helps in:
- Magnet Design and Optimization: Selecting materials, shapes, and sizes for desired magnetic performance.
- Quality Control: Ensuring magnets meet specified strength and consistency requirements.
- Magnetic Circuit Analysis: Predicting behavior and interaction of magnets in complex systems.
- Research and Development: Understanding fundamental magnetic properties and developing new materials and technologies.
Additional Resources:
- What is the Magnetic Moment?
- Measuring Remanence and Coercivity with a Hysteresisgraph
- Measuring Permanent Magnet Characteristics with a Helmholtz Coil and Fluxmeter
- Did you know? Adams can test the angular direction (ϕ, θ) of magnetization!
- How to Test a Magnet Using a Gaussmeter
- American Association of Physics Teachers: Measuring the magnetization of a permanent magnet
We hope this overview provides a helpful starting point for understanding and exploring magnetization measurements of permanent magnets. If you have any specific questions or areas of interest, please contact us!
