Alnico Horseshoe Magnets
Overview

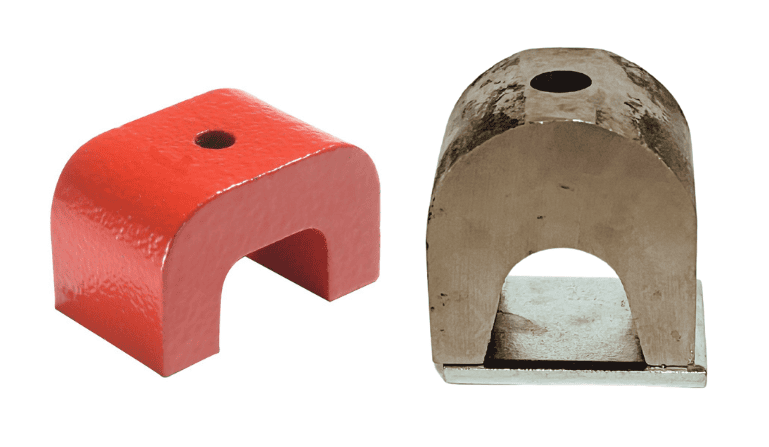

Alnico horseshoe magnets provide a compact, high power magnetic source, and are used for traction, lifting, sorting, clamping and retrieval. They are supplied with ground pole faces, painted and with metal keepers for storage and to help retain magnetic strength. Maximum operating temperature is approximately 1000°F.

Talk to an Adams Expert
Alnico Horseshoe Magnets

Product Specifications

Adams’ alnico horseshoe magnets are made of cast Alnico 5 material. All dimensions approximate and as cast with pole faces ground smooth. Other sizes are available upon request.

Contact us at 800-763-4795 if you don’t see what you’re looking for in this brief listing.

alnico horseshoe magnet

A B C D Hole size Pull Lbs Item#
1.570 0.980 0.980 0.787 0.197 19 40G0031
1.770 1.180 1.180 0.905 0.197 26 40G0010


Dimensions are in inches. Pull figures are maximum values; these will be achieved with smooth steel of adequate thickness where contact faces are intimate and clean.
